5B5V70 BRN

Name: 5B5V70 BRN
Brand: Regal Rexnord
SKU: 5B5V70 BRN
Price: 438.60 USD
Availability: OutOfStock

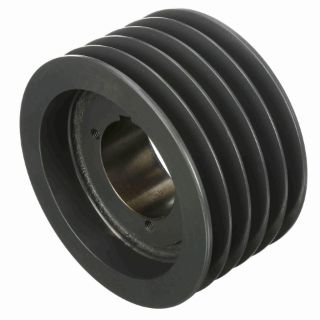

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1969146

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$438.60 / EA

Description

Brand Name

Browning®

Type

Type 4 Web

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 4 Web, Series: B5V®, Split Taper Bore, 3/4 to 2-11/16 in Bore, 7.28 in OD, 6.8 in (A)/7.3 in (B) Pitch Diameter, 5 Grooves, 3-7/8 in Face Width, Q1 Bushing, 4-1/4 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Combination groove all Browning® B5V sheaves permit the running of A, 4L, B, 5L and 5V belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
New casting design the B5V® castings were developed using CAD and finite elements analysis to determine where to add and eliminate material

Specifications

Bore Diameter:	3/4 to 2-11/16 in
Bore Type:	Split Taper
Bushing Type:	Q1
Country of Origin:	MX
Face Width:	3-7/8 in
Material:	Cast Iron
Number of Grooves:	5
Outside Diameter:	7.28 in
Overall Length:	4-1/4 in
Pitch Diameter:	6.8 in (A)/7.3 in (B)
Series:	B5V®
Suitable For Use With:	GripBelt® A and B, 5V Cross Section V-Belt
