5CLPT-1.5E BSF

Name: 5CLPT-1.5E BSF
Brand: Bussmann
SKU: 5CLPT-1.5E BSF
Availability: OutOfStock

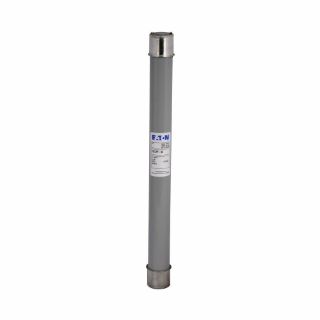

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

5CLPT-1.5E

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Type PT Current Limiting Medium Voltage

Description

Bussmann Fuse, Type PT Current Limiting Medium Voltage, Series: CLPT, Indicating, 1.5 A, 5.5 kV, 50 kA Interrupt, Class: E, 1.6 in Dia x 9.5 in L Body Size

Application

Medium Voltage Potential Transformers, Small Medium Voltage Service Transformers and Small Medium Voltage Control Transformers

Standards

IEEE/ANSI C37.46

Features

Low amp, current limiting E-rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E rating
E-rated general purpose fuses must have a current responsive element that will melt in 300 s at an RMS current within the range of 200% to 240% of the fuse's nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
PT fuses are physically dimensioned for easy installation in existing hardware
Space saving size eases design considerations for new installations
Current limiting fuses provide positive interruption even on low fault currents
The fuse limits the magnitude of electromechanical stresses in the protected apparatus
These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
Open fuse indicator speeds troubleshooting by providing a positive visual indication of fuse operation

Specifications

Amperage Rating:	1.5 A
Body Size:	1.6 in Dia x 9.5 in L
Class:	E
Country of Origin:	DO
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	50 kA
Series:	CLPT
Voltage Rating:	5.5 kV
