5G110-BL5 LEV

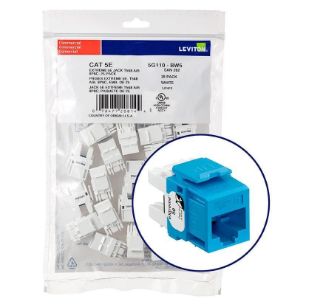

Picture of 5G110-BL5 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5G110-BL5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$335.54 / EA

Description

Brand Name

Leviton®

Type

8-Conductor 8-Position Component Rated

Description

The eXtreme® Cat 5e Component-Rated UTP Connector is designed to be used with all Leviton® QuickPort® compatible products. The connector includes patented Retention Force Technology which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The connector is in a 180 deg configuration with the punch field in the back, allowing for rear termination.
Leviton® eXtreme® UTP Connector, 8-Conductor 8-Position Component Rated, Cat 5e Module, Panel Mounting, 1 Port, Plastic, Blue, 0.89 in H x 0.64 in W x 1.21 in D

Application

Commercial, Voice, Data and Video Applications

Standards

ANSI/TIA-568-C.2/1096-A | ISO/IEC 11801 | FCC Part 68 | cULus Listed | CSA Certified | IEEE 802.3at/802.3bt | ACA Certified | UL94 V-0 Flammability Rating

Features

  • Fire retardant
  • Patented retention force technology (RFT) protects tines from damage and increases system longevity
  • Unique pair separation tower (PST) allowing for quick and easier termination
  • Dual layer T568B/T568A wiring label simplifies punchdown
  • Terminates 26 to 22 AWG solid conductor
  • Gastight IDC connectors prevent corrosion
  • Pair separation tower design facilitates separation of conductors and minimizes untwisting
  • 180 deg configuration allows for rear termination
  • Capable of multiple re-termination
  • High quality copper based alloy plated with 50 micro-in of gold over 100 micro-in of nickel

Specifications

Color:Blue
Country of Origin:US
Dimensions:0.89 in H x 0.64 in W x 1.21 in D
Material:Plastic
Module Type:Cat 5e
Mounting Type:Panel
Number of Ports:1
