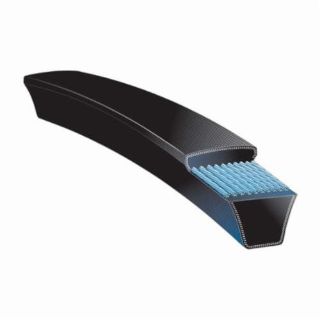

5V1120 GAT

Super HC™
Manufacturer: Gates
Manufacturer part number: 5V1120
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$106.91

Product Details

Brand Name

Gates

Alternate Supplier #

93341120

Description

Combines the strength of a wrapped belt construction with the economies of a narrow section V-belt. Transmits more power in a given space and allows more compact drive design than classical section V-belts. In short, it offers you more power and considerably reduces the space needed. This signifcantly cuts the overall drive cost. Super HC™ V-belts also have exclusive Gates construction features for longer life on your drives.

Features

Aramid tensile cords combine limited stretch with extraordinary strength and durability that is pound-for-pound stronger than steel. Flex-bonded cords are strongly secured to the body of the belt for equal load distribution of bending stress without cord deterioration. Distinctive green backing provides protection with machined sidewalls that provide even sheave groove contact for smooth operation, less slip and reduced wear. Patented Ethylene compound and optimized notches molded into the belt during manufacturing increase flexibility for compatibility with small diameter sheaves. Tested to transmit an average of 50% more horsepower than standard Super HC® Molded Notch belts. Available on demand in Matched sets (not V80® program eligible). Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:39
Belt Back Side:Smooth
Belt Inside:Smooth
Belt/Slab:Belt
Color:Black
Construcao:Banded
Cord Material:Polyester
Country of Origin:MX
Effective Length (in):111.97
Effective Length (mm):2844
GC Base Product:Super HC® V-Belts - 5V Section
Harmonized Tariff Code:4010.39.1000
Material:Ethylene Elastomeric
Max Temp (°C):+121
Max Temp (F):+250
Min Temp (°C):-51
Min Temp (F):-60
Number of Ribs/Strands:1
OC (in):112.34
OC (mm):2853
Proposition 65:NO
Secao:5V
Sided:Single Sided
Static Conductive:Yes
Thickness (in):0.533
Thickness (mm):14
Top Width (in):0.66
Top Width (mm):17
Unitset (V80):Yes
