5VS-LB 2.7/8 GAT

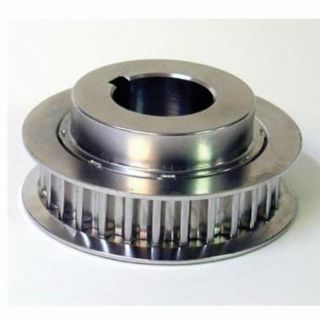

Poly Chain™ GT™ Sprocket
Manufacturer: Gates
Manufacturer part number: 14MX-43S-125 REBORE
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Gates

Alternate Supplier #

78965326

Description

Poly Chain GT sprockets use the tooth profile designed and developed by Gates and function with Gates Poly Chain GT belts in all existing constructions. These sprockets are statically balanced to make sure the entire belt drive is as safe as possible. Furthermore, they are manufactured, specified, and tested to perfectly support the full power capabilities of the Gates Poly Chain belt product range. Belts and sprockets used together get the best out of your belt drive: maximum performance, prolonged antistatic properties and optimal lifetime.

Features

WARNING: Do NOT use these sprockets with rim speeds in excess of 6,500 fpm. Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer. Poly Chain® GT® Sprockets keep overhung load below manufacturers' recommendation. Precisely manufactured and statically balanced to ISO 1940 (1973) to class G16. On a sprocket, pitch is the distance between groove centers and is measured on the pitch circle of the sprocket. The pitch circle of the sprocket coincides with the pitch line of the belt mating with it. The pitch diameter of the sprocket is always greater than its outside diameter. Orders must be placed through the Made-to-Order Metals team at 800-709-6001 or email makemymetal@gates.com. Rework applies only to plain bore sprockets. When ordering, specify the part number and rework needed. Rework options are as follows: BTS = Bored to Size and includes Standard Keyway and set screws. PB = Plain Bore. No Keyway. No Set Screws. KWY = Keyway only. SS = Set Screw only.

Specifications

Belt Pitch (in):0.55
Belt Pitch (mm):14
Belt Width (in):4.92
Belt Width (mm):125
Bore Max (in):4.8125
Bore Max (mm):122.2
Bore Min (in):1.5
Bore Min (mm):38.1
Country of Origin:US
GC Base Product:Poly Chain GT Sprockets - Re-Bore - 14MX -
Harmonized Tariff Code:8483.90.8080
Number of Groove/Teeth:43
Pitch Dia (in):7.543
Pitch Dia (mm):192
Proposition 65:NO
Stock:Made to Order - Min Not Required
