6 EB RHUB KOP

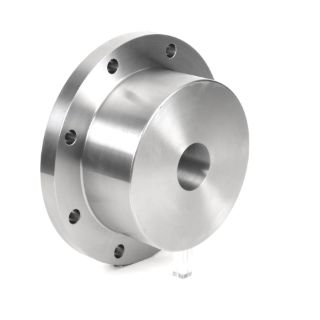

Picture of 6 EB RHUB KOP
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
1960525
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8,510.77 / EA

Description

Brand Name

Kop-Flex®

Description

Kop-Flex® Rigid Hub, 6 Coupling, 8-3/4 in Bore Dia, 11-1/2 in Hub Dia, 7-15/32 in Hub Length, 3600 rpm Maximum, 7-15/32 in Length Through Bore, Steel

Application

For use with series H exposed bolt gear coupling

Features

  • Large bore capacity with O-ring seal design and the most economical gear coupling design
  • Curved face teeth (sizes 1 through 7) for up to 1.5 deg static misalignment capability
  • Precision drilled flange bolt holes with special body-fitting, grade 5 bolts for a long-lasting piloted flange connection
  • Flange interchangeable with all the competitors
  • Large gear tooth pitch diameter with high torque capacity
  • Close fitting, tight tolerance flange holes and bolt holes
  • Field replaceable and standard nitrile rubber O-ring seal
  • Grease lubrication required
  • Series H coupling sleeves will bolt to all competitor couplings sizes 1 through 7 for interchangeability in flex halves

Specifications

Bore Diameter:8-3/4 in
Country of Origin:CN
Coupling Size:6
Hub Diameter:11-1/2 in
Hub Length:7-15/32 in
Length Through Bore:7-15/32 in
Material:Steel
Maximum Speed:3600 rpm
