600 1.29/1 G SP HUB

Name: 600 1.29/1 G SP HUB
Brand: Hub City
SKU: 600 1.29/1 G SP HUB
Availability: OutOfStock

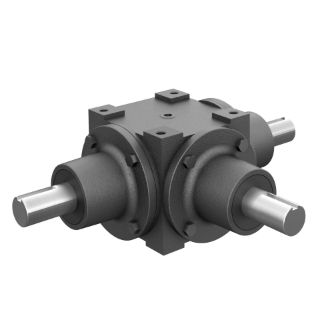

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-03434

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style G

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style G, Series: 600, 1.29:1 Gear Ratio, 34.7 hp, Shaft Input, Shaft Output, 1-3/8 in Dia x 2-1/2 in L Input, 1-3/8 in Dia Output, 1356.6 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1610 in-lb, 8-13/32 in Centre Distance, 5/16 x 5/32 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 16.8205 in W x 11.21875 in D x 5.625 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	8-13/32 in
Dimensions:	16.8205 in W x 11.21875 in D x 5.625 in H
Efficiency:	97.5 %
Gear Ratio:	1.29:1
Horsepower:	34.7 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-3/8 in Dia x 2-1/2 in L
Input Type:	Shaft
Keyway Size:	5/16 x 5/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1356.6 rpm
Output Size:	1-3/8 in Dia
Output Type:	Shaft
Series:	600
Torque Rating:	1610 in-lb
