6004 GRL

Name: 6004 GRL
Brand: Greenlee
SKU: 6004 GRL
Price: 20,474.42 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Greenlee

Manufacturer part number:

6004

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$20,474.42 / EA

Description

Brand Name

Greenlee®

Type

Electrical

Alternate Supplier #

Grainger - 34E668

Description

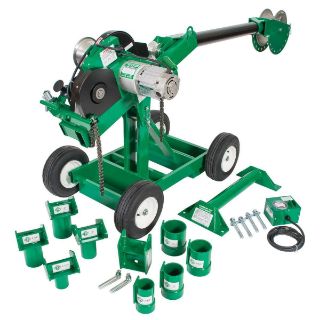

Greenlee® Super Tugger® Cable Puller Package, Electrical, Series: 6000, 4500 to 6500 lb Pulling, 4 Pulling Speeds, 16.5 fpm at No Load Pulling Speed, 3/4 in Diameter Cable, 26000 lb Load, 125 VAC, 20 A, 1-1/2 hp Power, 20-3/4 in L x 22-1/2 in W x 12 in H Dimensions

Standards

ARRA Compliant

Features

Pull upto 6500 lb with less than 27 lb of operator effort
Unique floor mounting attachment for quick, reliable setup
Leaf type mounting chains won't twist when tightening
Heat treated steel serrated gripper feet for secure mounting to conduit
Force gauge included to constantly monitor the pull
Right angle sheave allows the operator to stand out of the direct line of force
Audio alarm high force warning and circuit breaker shut-OFF at maximum force for added safety
Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan
Double braided composite rope
Pulling speed: 11 ft/min at 2000 lb, 7-1/2 ft/min at 4000 lb and 6 ft/min at 6000 lb
Accessory - 35098 3/4 in x 300 ft, 35100 3/4 in x 600 ft and 35101 3/4 in x 1200 ft double braided composite rope
120 VAC, 16 Hz, 20 A drive motor

Includes

Force Gauge, 6001 Super TuggerÂ®, Floor Mount, Mobile Carriage, Boom Mount, 4 ft Boom Tube, Nose Unit, 2-1/2 in, 3 in, 3-1/2 in, 4 in Slip-In and Screw-On Couplings and Storage Trays

Specifications

Amperage Rating:	20 A
Bare Tool/Kit:	Bare Tool
Cable Diameter:	3/4 in
Country of Origin:	US
Dimensions:	20-3/4 in L x 22-1/2 in W x 12 in H
Load Rating:	26000 lb
Number of Pulling Speeds:	4
Power Rating:	1-1/2 hp
Pulling Capacity:	4500 to 6500 lb
Pulling Speed:	16.5 fpm at No Load
Series:	6000
Voltage Rating:	125 VAC
