6004-ZZ-NR TKN

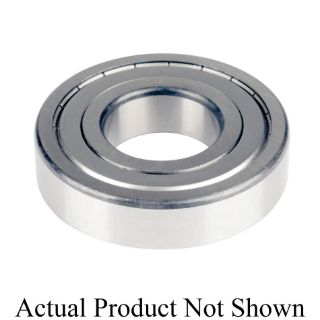

Picture of 6004-ZZ-NR TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6004-ZZ-NR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$88.14 / EA

Description

Brand Name

Timken®

Type

Extra Light Standard Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6004-ZZ-NR, ISO Deep Groove Radial Ball Bearing, Extra Light Standard Straight Bore, Series: 6000, 20 mm Bore, 42 mm OD, 1 Rows, 12 mm Width, Dual Shield Closure, 2113.204 lb Dynamic/1124 lb Static4471221595 Load, Cold Rolled Steel Cage, 17000 rpm Grease/25000 rpm Oil Maximum, -50 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Shields provides some contamination protection and lubricant retention
  • Snap ring provides an adequate shoulder without sacrificing capacity

Specifications

Bearing Material:Steel
Bore Diameter:20 mm
Cage Material:Cold Rolled Steel
Closure Type:Dual Shield
Load Capacity:2113.204 lb Dynamic/1124 lb Static4471221595
Maximum Speed:17000 rpm Grease/25000 rpm Oil
Number of Rows:1
Outside Diameter:42 mm
Series:6000
Temperature Rating:-50 to 120 deg C
Width:12 mm
