6005-2Z-L038-C3 FAG

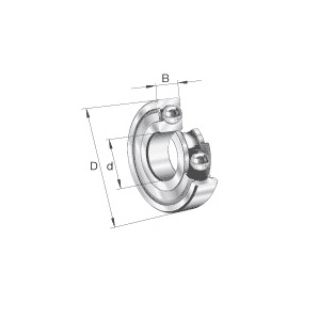

FAG 6005-2Z-L038-C3 60..-2Z Deep Groove Ball Bearing, 25 mm Dia Bore, 47 mm OD, 1 Rows, 12 mm W, 10700 N Dynamic/5900 N Static/305 N Fatigue Load
Manufacturer: INA
Manufacturer part number: 6005-2Z-L038-C3
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 60..-2Z, 25 mm Bore, 47 mm OD, 1 Rows, 12 mm Width, Double Shield Closure, 10700 N Dynamic/5900 N Static/305 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 18600 rpm Maximum, -30 to 120 deg C

Application

Textiles, Power Tools, Electric Motors, Pumps and Gearboxes

Standards

Meets to DIN 625-1

Features

  • Gap seal on both sides
  • C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:25 mm
Cage Material:Steel
Closure Type:Double Shield
Load Capacity:10700 N Dynamic/5900 N Static/305 N Fatigue
Maximum Speed:18600 rpm
Number of Rows:1
Outside Diameter:47 mm
Seal Material:Metal
Series:60..-2Z
Temperature Rating:-30 to 120 deg C
Width:12 mm
