6016-2RSR FAG

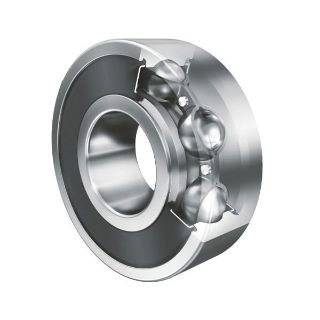

Picture of 6016-2RSR FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6016-2RSR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$261.09 / EA

Description

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.
FAG Deep Groove Ball Bearing, Series: Extra Light Series, 80 mm Bore, 125 mm OD, 1 Rows, 22 mm Width, Double Seal Closure, 51000 N Load, Steel Bearing, Elastomer Seal, Sheet Steel Cage, 2850 rpm Maximum, -30 to 150 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

  • Bearing arrangement must be operated with very low friction
  • High demands are made on the sealing of the bearing, without increasing heat generation
  • Bearing position is to be designed particularly economically
  • Contact lip seals on both sides
  • 51000 N dynamic/40000 N static

Specifications

Bearing Material:Steel
Bore Diameter:80 mm
Cage Material:Sheet Steel
Closure Type:Double Seal
Country of Origin:US
Load Capacity:51000 N
Maximum Speed:2850 rpm
Number of Rows:1
Outside Diameter:125 mm
Seal Material:Elastomer
Series:Extra Light Series
Temperature Rating:-30 to 150 deg C
Width:22 mm

Products Specifications

Brand Name
FAG Bearings
