603-1/4VBF53 RBC

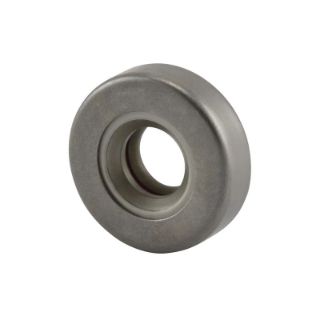

Nice® 6031/4VBF53 600® Unground Thrust Bearing, 0.525 in Dia Bore, 1 in OD, 0.344 in W, 526 lb Load
Manufacturer part number: 6031/4VBF53
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Nice®

Description

The 600® Series bearing is designed for moderate speeds and medium thrust loads. These bearings utilize a full ball complement. Rings are cold forged from hardenable strip steel and are carefully heat treated. These bearings may be plated or manufactured from stainless steel upon request. The entire assembly is housed in a soft steel band which lends itself to an easy press fit into a housing. The band also serves as a dust shield and helps retain the bearing lubricant. The upper ring is free to rotate in the band and has a close fit in the bore for the shaft. The lower ring is fixed in the band and has a shaft clearance in the bore.
Nice® Unground Thrust Bearing, Series: 600®, 0.525 in Bore Dia, 1 in Outside Dia, 0.344 in Width, 1 Thrust Direction, 526 lb, Carbon Steel Bearing, 1000 rpm Maximum, 250 deg F

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ASPR | CAS | DFAR | FAR Standards

Features

  • These bearings are shipped oiled with a rust preventative
  • Suitable for lower speed applications of up to 1000 rpm
  • Soft steel band serves as a dust shield
  • Designed for moderate loads
  • Hardened rings
  • Full complement of balls for maximum capacity
  • 1010 soft carbon steel band offers ease of installation
  • Upper ring is free to rotate and has close fit for shafts
  • Lower ring is fixed and has shaft clearance in the bore
  • Flat outside ring
  • Case hardened carbon steel rings
  • Grade 200 carbon steel balls
  • Full compliant
  • Standard slush

Specifications

Bearing Material:Carbon Steel
Bore Diameter:0.525 in
Country of Origin:US
Load Capacity:526 lb
Maximum Speed:1000 rpm
Outside Diameter:1 in
Series:600®
Temperature Rating:250 deg F
Thrust Direction:1
Width:0.344 in
