607-2RZ TKN

Name: 607-2RZ TKN
Brand: Timken
SKU: 607-2RZ TKN
Price: 25.06 USD
Availability: OutOfStock

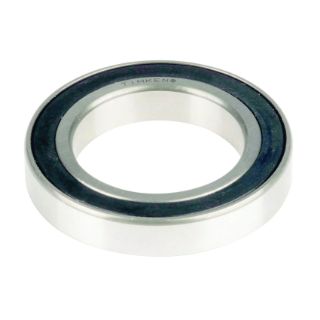

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

607-2RZ

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$25.06 / EA

Description

Brand Name

Timken®

Type

Extra Small Straight Bore

Description

Deep groove ball bearings are available in a variety of sizes and are the most popular of the rolling bearings. This type of bearing supports radial load and a small degree of axial load in both directions simultaneously. Deep groove ball bearings are popular due to their versatility, affordability and capability to run at high speeds. Most bearings in the 6000 series up to 60 mm bore can be made available in stainless steel (AISI 440C material) upon request.

Timken® Deep Groove Ball Bearing, Extra Small Straight Bore, Series: 600, 7 mm Bore Dia, 19 mm Outside Dia, 6 mm W, Dual Non-Contact Seal Closure, 2.3 kN Dynamic/0.89 kN Static, Steel Cage, 38000 rpm Grease/45000 rpm Oil Maximum

Application

For electric motor

Standards

ABEC 1 Standard

Features

Super finished raceways
Quiet operations
ISO standard interchangeable dimensions
Minimal size to performance ratio for ultra compact applications
Non-contact seals are used for higher speed capability applications that are environmentally controlled from airborne particulates
Premium grease for high performance, low torque and less noise
C0 normal internal clearance

Specifications

Bore Diameter:	7 mm
Cage Material:	Steel
Closure Type:	Dual Non-Contact Seal
Load Capacity:	2.3 kN Dynamic/0.89 kN Static
Maximum Speed:	38000 rpm Grease/45000 rpm Oil
Outside Diameter:	19 mm
Series:	600
Width:	6 mm
