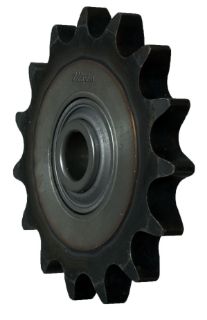

60BB13H MSG

Name: 60BB13H MSG
Brand: Martin Sprocket & Gear
SKU: 60BB13H MSG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

60BB13H

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Martin idlers are smooth-running and available in oil-impregnated, sintered bronze, extra-duty bearing press-fitted in sprocket and a hardened steel journal case for maximum resistance to wear. Steel sprockets used in Martin idlers are accurately machined (not stamped) the same as sprockets normally supplied for power transmission use. Martin can also alter existing sprockets and install bearings to make custom idlers.

Features

Can be used to change the direction of chain motion or to adjust chain tension

Specifications

Accessory:	Chain Tightener Part #E5006
Bearing Bore Size:	0.638
Bearing Type:	Ball Bearing
Bore Type:	Bearing
Caliper Diameter:	2.642
Chain / Sprocket Number:	60
Dimensions UOM:	Inch
Hub Outside Diameter:	1.901
Length Thru Bore:	0.72
Material:	Steel
Number of Teeth:	13
Number of Teeth Rows / Strands:	1
Outside Diameter:	3.49
Pitch Diameter:	3.134
Single Strand Tooth Thickness:	0.459
Storage Dimension Height:	0.72
Storage Dimension Length:	3.49
Storage Dimension Width:	3.49
