60BTB17H MSG

Name: 60BTB17H MSG
Brand: Martin Sprocket & Gear
SKU: 60BTB17H MSG
Price: 61.31 USD
Availability: InStock

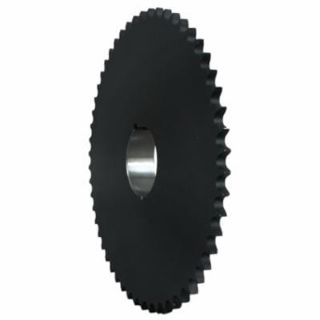

Martin Saber Tooth® 60BTB17H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 4.462 in OD, #60 Chain, 17 Teeth, 3/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 60BTB17H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$61.31

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 4.462 in Outside Dia, #60 Chain, 17 Teeth, 3/4 in Pitch, 4.082 in, 3-1/4 in Hub Dia, 1 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	1610 Taper Lock
Chain Size:	#60
Country of Origin:	US
Hub Diameter:	3-1/4 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	4.462 in
Pitch:	3/4 in
Pitch Diameter:	4.082 in
