Actual Product May Vary From Image

60BTB40 MSG

Name: 60BTB40 MSG
Brand: Martin Sprocket & Gear
SKU: 60BTB40 MSG
Price: 118.34 USD
Availability: InStock

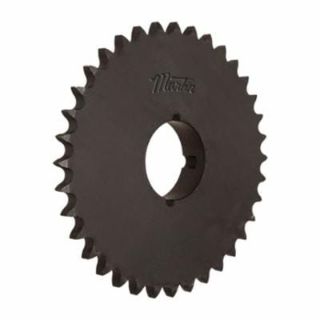

Martin 60BTB40 Taper Bushed Type B Single Pitch Roller Chain Sprocket, 9.98 in OD, #60 Chain, 40 Teeth, 3/4 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 60BTB40

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$118.34

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 9.98 in Outside Dia, #60 Chain, 40 Teeth, 3/4 in Pitch, 9.559 in, 3.563 in Hub Dia, 1-1/4 in Length Through Bore, 2012 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	2012 Taper Lock
Chain Size:	#60
Country of Origin:	US
Hub Diameter:	3.563 in
Length Through Bore:	1-1/4 in
Material:	Steel
Number of Teeth:	40
Outside Diameter:	9.98 in
Pitch:	3/4 in
Pitch Diameter:	9.559 in
