60BTB54 MSG

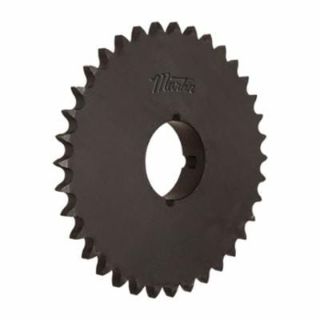

Picture of 60BTB54 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
60BTB54
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$179.12 / EA

Description

Brand Name

Martin

Type

Taper Bushed Type B

Description

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 13.327 in Outside Dia, #60 Chain, 54 Teeth, 3/4 in Pitch, 12.899 in, 4-1/4 in Hub Dia, 1-3/4 in Length Through Bore, 2517 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bushing Type:2517 Taper Lock
Chain Size:#60
Country of Origin:US
Hub Diameter:4-1/4 in
Length Through Bore:1-3/4 in
Material:Steel
Number of Teeth:54
Outside Diameter:13.327 in
Pitch:3/4 in
Pitch Diameter:12.899 in

Products Specifications

ANSI Sprocket Number
60
Brand Name
Martin Sprocket & Gear
Number of Teeth
54
Type
Taper Bushed Sprocket
