60HQ300 BRN

Name: 60HQ300 BRN
Brand: Regal Rexnord
SKU: 60HQ300 BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1057512

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Type 15

Description

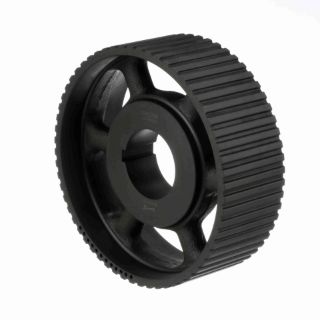

Browning® Gearbelt® Synchronous Timing Pulley, Type 15, Split Taper Bore, 3/4 to 2-11/16 in Bore, 9.495 in OD, 9.549 in Pitch Diameter, 60 Grooves, 1/2 in Pitch, 3.313 in Face Width, 4-1/8 in Diameter Hub, 0.031 in Hub Projection, Q1 Bushing, 3-9/16 in Overall Length, For Use With: 3 in W Type H300 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	3/4 to 2-11/16 in
Bore Type:	Split Taper
Bushing Type:	Q1
Country of Origin:	US
Face Width:	3.313 in
Hub Diameter:	4-1/8 in
Hub Projection:	0.031 in
Number of Grooves:	60
Outside Diameter:	9.495 in
Overall Length:	3-9/16 in
Pitch:	1/2 in
Pitch Diameter:	9.549 in
Suitable For Use With:	3 in W Type H300 Belt
