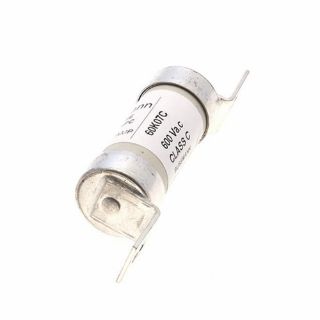

Actual Product May Vary From Image

60K07C BSF

Name: 60K07C BSF
Brand: Bussmann
SKU: 60K07C BSF
Availability: OutOfStock

Bussmann 60K07C HRC Form II Canadian Current Limiting Fuse, 60 A, 600 VAC/250 VDC, 200 kA Interrupt, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 60K07C

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

HRC Form II Canadian Current Limiting

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse, HRC Form II Canadian Current Limiting, Series: K07C, 60 A, 600 VAC/250 VDC, 200 kA Interrupt, Offset Blade Terminal, Stud Mounting, Cartridge Body, Ceramic, 0.88 in Dia x 3.44 in L Body

Application

Protect motor control circuits, together with contactors and overload protection relays

Standards

CE Certified | CSA C22.2 No. 106M1992 | BS 88:2 | IEC 60269:2 | IEC 60947-4

Specifications

Amperage Rating:	60 A
Body Size:	0.88 in Dia x 3.44 in L
Body Type:	Cartridge
Country of Origin:	GB
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	K07C
Terminal Type:	Offset Blade
Voltage Rating:	600 VAC/250 VDC
