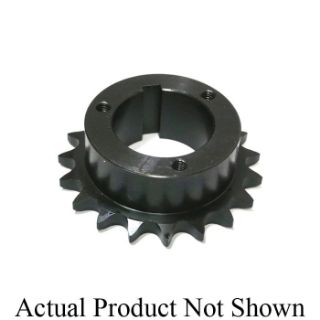

Actual Product May Vary From Image

60Q29 UST

Name: 60Q29 UST
Brand: US Tsubaki
SKU: 60Q29 UST
Price: 136.13 USD
Availability: OutOfStock

Tsubaki® 60Q29 Roller Chain Sprocket, 7.346 in OD, #60 Chain, 29 Teeth, 6.937 in Dia Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 60Q29

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$136.13

Qty:

Product Details

Brand Name

Tsubaki®

Description

Keep your system on the cutting edge with Tsubaki®, LLC. sprockets and discover the difference quality makes. Tsubaki® sprockets are manufactured from top-grade , heat treated steel to withstand heavy shock loading, resist abrasion and provide long service life. Alloy and stainless steel sprockets are also available for extra corrosion resistance and food-grade applications.

Tsubaki® Roller Chain Sprocket, 7.346 in Outside Dia, #60 Chain, 29 Teeth, 3/4 in Pitch, 6.937 in, 4-1/2 in Hub Dia, 1-3/4 in Length Through Bore, Split Taper Q1 Bushing, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry Applications

Features

Type B - Hub extension on one-side

Specifications

Bushing Type:	Split Taper Q1
Chain Size:	#60
Country of Origin:	JP
Hub Diameter:	4-1/2 in
Length Through Bore:	1-3/4 in
Material:	Carbon Steel
Number of Teeth:	29
Outside Diameter:	7.346 in
Pitch:	3/4 in
Pitch Diameter:	6.937 in
