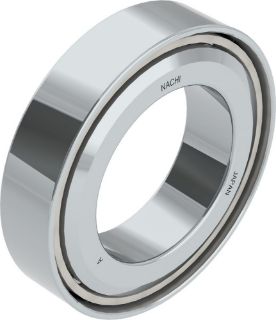

60TAB12UP4 NAC

The Single Row Angular Contact Ball Bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The direction of the load through the balls forms the contact angle. This Super Precision Angular Contact Ball Bearing is tailored toward the Machine Tool Industry. It is Manufactured to very high quality standards (ISO: Class 4, ABEC7) and has a 60° contact angle which is great for very high axial thrust loads and Ball Screw Applications. These bearings are generally used in pairs because axial forces are generated when radial loads are applied. These are Universally Ground bearings that can be arranged in any configuration. These bearings are most commonly used in high accuracy and high-speed precision machining center, measuring, robotic and feed actuator applications. - High Stiffness - Low Noise - Medium Preload is Standard - High Quality Bearing Steel - Ball Guided Polyamide Cage - Super honed raceways for high accuracy, improved lubrication and extended life - Normally stocked as universal pairs or universal singles.
