Actual Product May Vary From Image

61-063 IDE

Name: 61-063 IDE
Brand: Ideal Industries
SKU: 61-063 IDE
Availability: OutOfStock

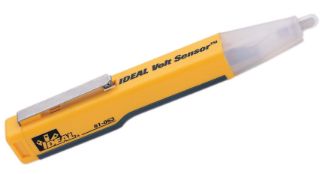

IDEAL® Volt Sensor™ 61-063 Non-Contact Voltage Tester, 40 to 600 VAC Max Measurable, 40 to 600 VAC Max Working

Manufacturer: Ideal Industries

Manufacturer part number: 61-063

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Non-Contact

Alternate Supplier #

Grainger - 25C094

Description

The Volt Sensor™ detects 40 to 600 VAC with respect to ground by simply grasping the instrument in your hand, depressing the clip and placing the tip near a live wire.

IDEAL® Volt Sensor™ Voltage Tester, Non-Contact, 40 to 600 VAC Maximum Measurable Voltage, 40 to 600 VAC Maximum Working Voltage, 6562 ft Distance, LED Light Source, 1.5 VDC Button Battery, 50/60 Hz Frequency, Environmental Conditions: 32 to 104 deg F, 80% RH Maximum 50% RH Above 31 deg C, 5.2 in H x 1 in W x 0.8 in D Dimensions

Standards

RoHS Compliant | cULus Listed | Cat III | CE Certified

Features

Audible and visual indication
Locates breaks along live insulated wires
Tests for energized circuits
Compact rugged housing
Over molded rubber cushion grip

Specifications

Battery:	1.5 VDC Button
Country of Origin:	CN
Dimensions:	5.2 in H x 1 in W x 0.8 in D
Distance Range:	6562 ft
Environmental Conditions:	32 to 104 deg F, 80% RH Maximum 50% RH Above 31 deg C
Frequency Rating:	50/60 Hz
Light Source:	LED
Maximum Measurable Voltage:	40 to 600 VAC
Maximum Working Voltage:	40 to 600 VAC
