61-746 IDE

Name: 61-746 IDE
Brand: Ideal Industries
SKU: 61-746 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

61-746

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 3EVP6

Description

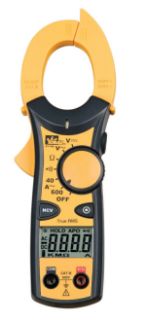

IDEAL® Clamp-Pro™ Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC Electrical Rating, 400 Ohm to 400 MOhm Resistance, 1-1/4 in Jaw, 4000 Count, LCD Display, 1.7% + 10 Digits, 3% + 10 Digits AC AC Current Accuracy, 1.2% + 8 Digits, 1.5% + 8 Digits AC, 0.5% + 2 Digits DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, 1.5 VDC AAA Alkaline Battery Power Source, 32 to 122 deg F Operating, 8 in H x 2.6 in W x 1.5 in D Dimensions

Standards

RoHS Compliant | UL 61010 | CE Certified

Features

Non contact voltage indicator (70 to 600 VAC)
Low battery indicator
Measures up to 600 AAC
Continuity, tapered jaws with hook tip
Auto/manual ranging
Data hold
Auto power off

Includes

(2) 1.5 V AAA Batteries, Operating Instructions, Carrying Case and Test Leads

Specifications

AC Current Accuracy:	1.7% + 10 Digits, 3% + 10 Digits AC
Country of Origin:	US
Counts:	4000
Dimensions:	8 in H x 2.6 in W x 1.5 in D
Display Type:	LCD
Electrical Ratings:	40/400/600 A AC, 400/600 VAC/VDC
Jaw Capacity:	1-1/4 in
Operating Temperature:	32 to 122 deg F
Power Source:	1.5 VDC AAA Alkaline Battery
Resistance:	400 Ohm to 400 MOhm
Safety Rating:	CAT III 600 VAC
Voltage Accuracy:	1.2% + 8 Digits, 1.5% + 8 Digits AC, 0.5% + 2 Digits DC
