61-763 IDE

Name: 61-763 IDE
Brand: Ideal Industries
SKU: 61-763 IDE
Availability: OutOfStock

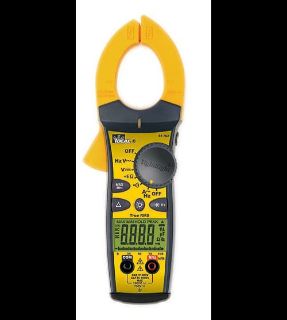

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

61-763

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 24Z726

Description

IDEAL® TightSight® Clamp Meter, Series: 760, 0 to 750 VAC, 0 to 999 VDC, 0 to 660 A AC/DC Electrical Rating, 0 to 999.9/1000 to 9999 Ohm Resistance, 20 to 400 Hz Frequency, 1.42 in Jaw, 9999 Count, Backlit LCD Display, 2/6% +/-5 Digits AC Current Accuracy, 6% 5 Digits, 1.5% 5 Digits, 1% 5 Digits AC, 1% 5 Digits, 1.5% 5 Digits DC Voltage Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, 61-763, 61-765 9 VDC 100 hr Alkaline Battery Power Source, 32 to 122 deg F Operating, 3.1 in W x 1.8 in D x 8.7 in H Dimensions

Application

For variety of industrial and commercial environments

Standards

Features

Selectable audible and visual alerts when potentially hazardous voltages are detected at the probe terminals
Low battery indicator
Reads accurately on noisy electrical circuits
660 A True-RMS clamps for a variety of industrial and commercial environments
Unique TightSight bottom display makes hard to reach measurements convenient
Easy to read displays feature large numbers and green glowing backlight
Cat IV rating for maximum safety, frequency, capacitance, peak, data hold, max/min
High frequency rejection and EMI shielding features provide accurate voltage/frequency readings on non-sinusoidal wave forms such as adjustable speed drives
Selectable audible and visual voltage alerts on AC/DC voltage functions, frequency via clamp head or test leads
Audible continuity, selectable auto power off
Tapered jaws with hook tip
True RMS current and AC/DC voltage
Peak hold, Max/min hold, Data hold

Includes

(1) 9 VDC Battery, Operating Instructions, C-760 Nylon Carrying Case and TL-104 Test Leads with Large Alligator Clips

Specifications

AC Current Accuracy:	2/6% +/-5 Digits AC
Country of Origin:	US
Counts:	9999
Dimensions:	3.1 in W x 1.8 in D x 8.7 in H
Display Type:	Backlit LCD
Electrical Ratings:	0 to 750 VAC, 0 to 999 VDC, 0 to 660 A AC/DC
Frequency Rating:	20 to 400 Hz
Jaw Capacity:	1.42 in
Operating Temperature:	32 to 122 deg F
Power Source:	61-763, 61-765 9 VDC 100 hr Alkaline Battery
Resistance:	0 to 999.9/1000 to 9999 Ohm
Safety Rating:	CAT IV 600 VAC, CAT III 1000 VAC
Series:	760
Voltage Accuracy:	6% 5 Digits, 1.5% 5 Digits, 1% 5 Digits AC, 1% 5 Digits, 1.5% 5 Digits DC
