61-773 IDE

Name: 61-773 IDE
Brand: Ideal Industries
SKU: 61-773 IDE
Availability: OutOfStock

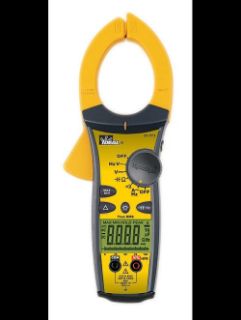

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

61-773

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Type

True RMS

Alternate Supplier #

Grainger - 24Z520

Description

The new feature-rich IDEAL TightSight® clamp meters are built to professional quality standards to withstand tough use in commercial and industrial settings. The high frequency Rejection (HFR) feature measures accurately even in noisy electrical environments. For everything from load measurement to troubleshooting industrial motors and adjustable speed drives (ASDs), the new TightSight clamps bring speed, accuracy, safety and ease-of-use together in one rugged meter line.

IDEAL® TightSight® Clamp Meter, True RMS, Series: 770, 999.9 A at 750 VAC, 999.9 VDC Electrical Rating, 9999 Ohm Resistance, 20 to 400 Hz Frequency, 2 in Jaw, 4 Digit LCD Display, 2 % AC Current Accuracy, 1.0% AC/DC Voltage Accuracy, Safety Rating: CAT IV, 9 VDC Alkaline Battery Power Source, -20 to 70 deg C Operating, 10.6 in H x 4.1 in W x 1.9 in D Dimensions

Application

For industrial and commercial environments

Standards

UL 61010, CE Certified | C 12966, Safety Rated CAT IV | RoHS Compliant

Features

Unique TightSight bottom display makes hard-to-reach measurements convenient
Easy-to-read displays feature large numbers and green glowing backlight
CAT IV rating for maximum safety
Frequency, capacitance, peak, data hold, max/min
On-screen low battery indicator warning user an hour before power is shut off to avoid inaccurate readings
Increased operating range from -20 deg C to + 70 deg C
Zeroing display and low amp measurement feature
High frequency Rejection to assure accuracy when measuring in noisy electrical environments
Hardened meter case and dial construction to withstand heavy duty commercial and industrial settings
1000 A true-rms clamps for a variety of industrial and commercial environments
2% AC current, 2% DC current, 1% AC voltage, 1% DC voltage, 1.5% resistance, 5% capacitance, 0.5% frequency, 1% AC voltage accuracy
-20 to 70 deg C operation, -20 to 60 deg C storage temperature rating, 4000 uF capacitance
Tapered jaws with hook tip
Audible continuity

Specifications

AC Current Accuracy:	2 %
Country of Origin:	TW
Dimensions:	10.6 in H x 4.1 in W x 1.9 in D
Display Type:	4 Digit LCD
Electrical Ratings:	999.9 A at 750 VAC, 999.9 VDC
Frequency Rating:	20 to 400 Hz
Jaw Capacity:	2 in
Operating Temperature:	-20 to 70 deg C
Power Source:	9 VDC Alkaline Battery
Resistance:	9999 Ohm
Safety Rating:	CAT IV
Series:	770
Voltage Accuracy:	1.0% AC/DC
