61031T FER

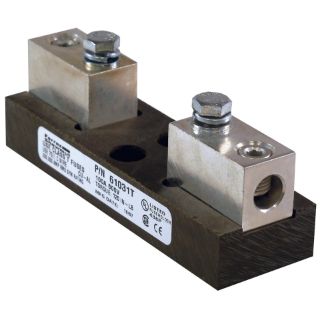

Picture of 61031T FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
61031T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$88.19 / EA

Description

Brand Name

Mersen

Type

Open Style

Description

MERSEN class T fuse blocks accommodate class T fuses up to 600 A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. MERSEN is the only manufacturer to offer class T blocks with copper connectors.
Mersen Fuse Block, Open Style, 600 VAC/300 VDC, 100 A, 1 Pole, 1 ph, Class: T, Box Connection, 6 to 2/0 AWG Wire, DIN Rail/Threaded Mounting, 150 deg C, For Use With: A3T/A6T Fuse, Phenolic, 4.78 in H x 1.5 in W x 1.95 in D Dimensions

Standards

RoHS Compliant | UL 4248-15 Guide IZLT File No. E52283 | UL 4248-15 Guide IZLT2 File No. E52283 Recognized | CSA C22.2 Class 6225-01 File No. 32169_0_000 | CE Certified

Features

  • Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors

Specifications

Amperage Rating:100 A
Class:T
Connection Type:Box
Country of Origin:MX
Dimensions:4.78 in H x 1.5 in W x 1.95 in D
Material:Phenolic
Mounting Type:DIN Rail/Threaded
Number of Phases:1
Number of Poles:1
Suitable For Use With:A3T/A6T Fuse
Temperature Rating:150 deg C
Voltage Rating:600 VAC/300 VDC
Wire Size:6 to 2/0 AWG

Products Specifications

Brand Name
Ferraz Shawmut
Class
Class T
Type
Open Style Fuse Block
