614-103-1 REX

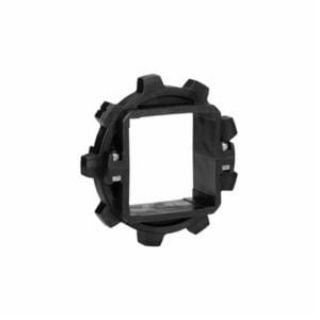

MCC® MatTop® 614-103-1 5990 Molded Split Block Chain Sprocket, 1-1/2 in Dia Bore, 6.46 in OD, 9 Teeth, Glass Reinforced Polyamide
Manufacturer: Rexnord
Manufacturer part number: 614-103-1
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$116.21

Product Details

Brand Name

MCC®

Type

Molded Split Block

Description

MCC® MatTop® Chain Sprocket, Molded Split Block, Series: 5990, 1-1/2 in Bore Dia, 6.46 in Outside Dia, 9 Teeth, 6.579 in, 3/8-16 Screw, 3/8 in W x 3/8 in H x 3/16 in D Keyway, 2.06 in Length Through Bore, Glass Reinforced Polyamide

Application

For use with MatTop® 5990 and 6990 series chains

Features

  • NS split sprockets for easy installation as well as providing excellent chain sprocket interaction
  • Square shaft ready bore

Specifications

Bore Diameter:1-1/2 in
Keyway Size:3/8 in W x 3/8 in H x 3/16 in D
Length Through Bore:2.06 in
Material:Glass Reinforced Polyamide
Number of Teeth:9
Outside Diameter:6.46 in
Pitch Diameter:6.579 in
Screw Size:3/8-16
Series:5990
