Actual Product May Vary From Image

614-107-3 REX

Name: 614-107-3 REX
Brand: Rexnord
SKU: 614-107-3 REX
Price: 66.21 USD
Availability: OutOfStock

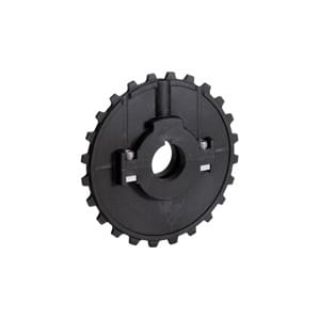

MCC® MatTop® 614-107-3 5930 Molded Split Block Chain Sprocket, 1-1/4 in Bore Dia, 5.88 in OD, 24 Teeth, Glass Reinforced Polyamide

Manufacturer: Rexnord

Manufacturer part number: 614-107-3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$66.21

Qty:

Product Details

Brand Name

MCC®

Type

Molded Split Block

Description

MCC® MatTop® Chain Sprocket, Molded Split Block, Series: 5930, 1-1/4 in Bore Dia, 5.88 in Outside Dia, 24 Teeth, 5.8 in, 3/8-16 Screw, 5/16 in W x 5/16 in H x 5/32 in D Keyway, 1.11 in Length Through Bore, Glass Reinforced Polyamide

Application

For use with MatTop® 5930 and 6930 series chains

Features

NS split sprockets for easy installation as well as providing excellent chain sprocket interaction
Round shaft-ready bore

Includes

(1) Keyway and (1) Setscrew

Specifications

Bore Diameter:	1-1/4 in
Keyway Size:	5/16 in W x 5/16 in H x 5/32 in D
Length Through Bore:	1.11 in
Material:	Glass Reinforced Polyamide
Number of Teeth:	24
Outside Diameter:	5.88 in
Pitch Diameter:	5.8 in
Screw Size:	3/8-16
Series:	5930
