Actual Product May Vary From Image

614-142-3 REX

Name: 614-142-3 REX
Brand: Rexnord
SKU: 614-142-3 REX
Price: 63.05 USD
Availability: OutOfStock

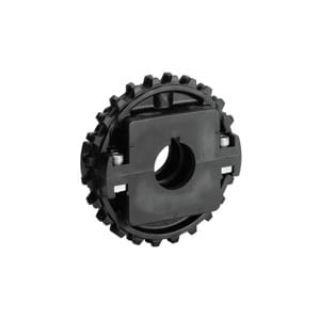

MCC® MatTop® 614-142-3 1500 Molded Split Block Chain Sprocket, 1-1/2 in Bore Dia, 4.55 in OD, 24 Teeth, Glass Reinforced Polyamide

Manufacturer: Rexnord

Manufacturer part number: 614-142-3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$63.05

Qty:

Product Details

Brand Name

MCC®

Type

Molded Split Block

Description

MCC® MatTop® Chain Sprocket, Molded Split Block, Series: 1500, 1-1/2 in Bore Dia, 4.55 in Outside Dia, 24 Teeth, 4.524 in, 3/8-16 Screw, 3/8 in W x 3/8 in H x 3/16 in D Keyway, 1.57 in Length Through Bore, Glass Reinforced Polyamide

Application

For use with MatTop® 1500 series chains

Features

NS split sprockets for easy installation as well as providing excellent chain sprocket interaction
Square shaft-ready bore

Specifications

Bore Diameter:	1-1/2 in
Keyway Size:	3/8 in W x 3/8 in H x 3/16 in D
Length Through Bore:	1.57 in
Material:	Glass Reinforced Polyamide
Number of Teeth:	24
Outside Diameter:	4.55 in
Pitch Diameter:	4.524 in
Screw Size:	3/8-16
Series:	1500
