614-143-1 REX

Name: 614-143-1 REX
Brand: Rexnord
SKU: 614-143-1 REX
Price: 63.05 USD
Availability: OutOfStock

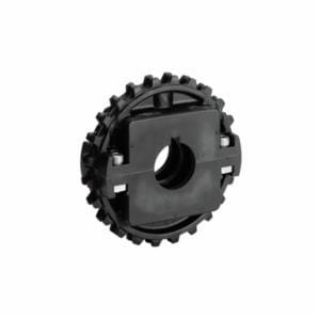

MCC® MatTop® 614-143-1 1500 Molded Split Block Chain Sprocket, 1 in Dia Bore, 4.55 in OD, 24 Teeth, Glass Reinforced Polyamide

Manufacturer: Rexnord

Manufacturer part number: 614-143-1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$63.05

Qty:

Product Details

Brand Name

MCC®

Type

Molded Split Block

Description

MCC® MatTop® Chain Sprocket, Molded Split Block, Series: 1500, 1 in Bore Dia, 4.55 in Outside Dia, 24 Teeth, 4.524 in, 3/8-16 Screw, 1/4 in W x 1/4 in H x 1/8 in D Keyway, 1.57 in Length Through Bore, Glass Reinforced Polyamide

Application

For use with MatTop® 1500 series chains

Features

NS split sprockets for easy installation as well as providing excellent chain sprocket interaction
Round shaft ready bore

Includes

(1) Keyway and (1) Setscrew

Specifications

Bore Diameter:	1 in
Keyway Size:	1/4 in W x 1/4 in H x 1/8 in D
Length Through Bore:	1.57 in
Material:	Glass Reinforced Polyamide
Number of Teeth:	24
Outside Diameter:	4.55 in
Pitch Diameter:	4.524 in
Screw Size:	3/8-16
Series:	1500
