614-148-3 REX

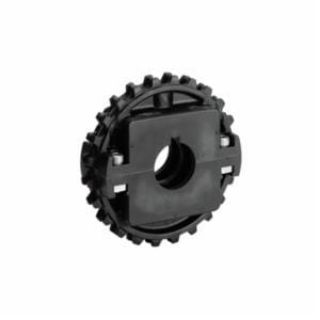

MCC® MatTop® 614-148-3 1500 Molded Split Block Chain Sprocket, 2-1/2 in Dia Bore, 6.1 in OD, 32 Teeth, Glass Reinforced Polyamide
Manufacturer: Rexnord
Manufacturer part number: 614-148-3
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$69.31

Product Details

Brand Name

MCC®

Type

Molded Split Block

Description

MCC® MatTop® Chain Sprocket, Molded Split Block, Series: 1500, 2-1/2 in Bore Dia, 6.1 in Outside Dia, 32 Teeth, 6.04 in, 1/2-13 Screw, 5/8 in W x 5/8 in H x 5/16 in D Keyway, 1.57 in Length Through Bore, Glass Reinforced Polyamide

Application

For use with MatTop® 1500 series chains

Features

  • NS split sprockets for easy installation as well as providing excellent chain sprocket interaction
  • Square shaft ready bore

Specifications

Bore Diameter:2-1/2 in
Keyway Size:5/8 in W x 5/8 in H x 5/16 in D
Length Through Bore:1.57 in
Material:Glass Reinforced Polyamide
Number of Teeth:32
Outside Diameter:6.1 in
Pitch Diameter:6.04 in
Screw Size:1/2-13
Series:1500
