615PV LEV

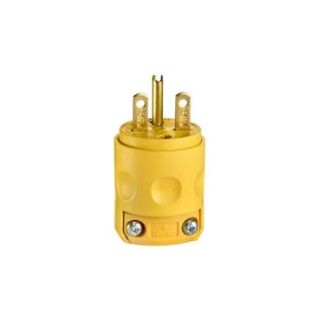

Picture of 615PV LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
615PV
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$11.32 / EA

Description

Brand Name

Leviton®

Type

Cable Mount Grounding

Alternate Supplier #

Grainger - 25LE46

Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Leviton®, 615PV, Straight Blade Plug, Cable Mount Grounding, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15P NEMA Rating, Commercial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H Dimensions

Application

Commercial and Outdoor Cords Applications

Standards

ANSI C73 | NOM 057 | NEMA WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • Triple drive standard head screws
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Motor base inlet accepts 10 AWG maximum copper or copper clad wire
  • Rugged PVC body resist moisture and chemicals
  • Speed thread assembly screws tighten with just a few quick turns
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • 18 to 12 AWG terminal accommodation
  • Suited for outdoor cords
  • Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.245 to 0.7 in
Country of Origin:MX
Dimensions:1.54 in Dia x 2.77 in H
Grade:Commercial
Material:PVC
NEMA Rating:NEMA 6-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Voltage Rating:250 VAC
