617 LEV

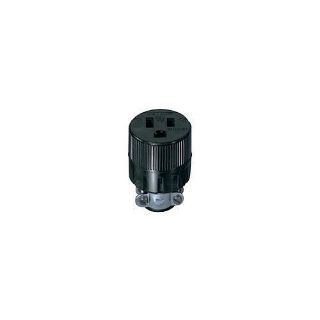

Picture of 617 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
617
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6.74 / EA

Description

Brand Name

Leviton®

Type

Cable Mount Grounding

Description

Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Leviton®, 617, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R/1-15P NEMA Rating, Residential Grade, 0.437 in Diameter Cord, -40 to 65 deg C, Screw Terminal, Vinyl, Black

Standards

NOM 057 | UL File No. E13393 | CSA Certified | UL94 V-2 Flammability Rating

Features

  • Triple drive head screws standard, Philips® and Robertson
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
  • Motor base inlet accepts 10 AWG maximum copper or copper clad wire
  • Brass plug blades and connector contacts for maximum conductivity
  • Rugged PVC body resist moisture and chemicals
  • Unique dimpled body design provides a secure grip
  • Speed thread assembly screws tighten with just a few quick turns
  • 20 to 16 AWG terminal accommodation
  • Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity

Specifications

Amperage Rating:15 A
Color:Black
Cord Diameter:0.437 in
Country of Origin:MX
Grade:Residential
Material:Vinyl
NEMA Rating:NEMA 5-15R/1-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 65 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
