Home / 61800 TKN

61800 TKN

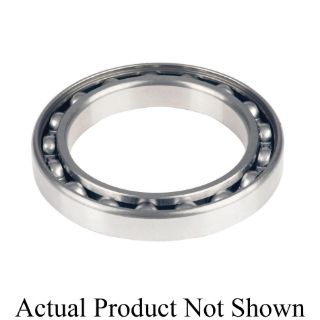

Picture of 61800 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
61800
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$104.83 / EA

Description

Brand Name

Timken®

Type

Extra Ultra Light Thin Section Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 61800, ISO Deep Groove Radial Ball Bearing, Extra Ultra Light Thin Section Straight Bore, 10 mm Bore, 19 mm OD, 1 Rows, 5 mm Width, Open Closure, 382.175 lb Dynamic/188.84 lb Static Load, Cold Rolled Steel Cage, 34000 rpm Grease/40000 rpm Oil Maximum, -50 to 120 deg C

Application

Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

Super finished raceways

Specifications

Bearing Material:Steel
Bore Diameter:10 mm
Cage Material:Cold Rolled Steel
Closure Type:Open
Load Capacity:382.175 lb Dynamic/188.84 lb Static
Maximum Speed:34000 rpm Grease/40000 rpm Oil
Number of Rows:1
Outside Diameter:19 mm
Series:61000
Temperature Rating:-50 to 120 deg C
Width:5 mm
