61826-2RS-C3 TKN

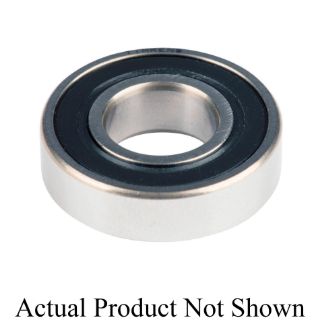

Picture of 61826-2RS-C3 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
61826-2RS-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,387.35 / EA

Description

Brand Name

Timken®

Type

Extra Ultra Light Thin Section Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 61826-2RS-C3, ISO Deep Groove Radial Ball Bearing, Extra Ultra Light Thin Section Straight Bore, Series: 61800, 130 mm Bore, 165 mm OD, 1 Rows, 18 mm Width, Dual Contact Seal Closure, 8452.816 lb Dynamic/9644.304 lb Static Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 3400 rpm Grease/5000 rpm Oil Maximum, -40 to 120 deg C

Application

Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

Super finished raceways

Specifications

Bearing Material:Steel
Bore Diameter:130 mm
Cage Material:Cold Rolled Steel
Closure Type:Dual Contact Seal
Load Capacity:8452.816 lb Dynamic/9644.304 lb Static
Maximum Speed:3400 rpm Grease/5000 rpm Oil
Number of Rows:1
Outside Diameter:165 mm
Seal Material:Nitrile Rubber
Series:61800
Temperature Rating:-40 to 120 deg C
Width:18 mm
