61844 FAG

Name: 61844 FAG
Brand: INA
SKU: 61844 FAG
Price: 4,572.10 USD
Availability: OutOfStock

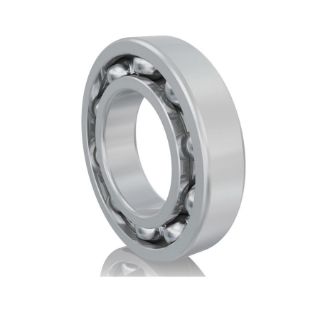

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

61844

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$4,572.10 / EA

Description

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.

FAG Deep Groove Ball Bearing, Series: 618, 220 mm Bore, 270 mm OD, 1 Rows, 24 mm Width, Open Closure, 78000 N Load, Sheet Steel Cage, 3200 rpm Maximum, -30 to 200 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

Bearing arrangement must be operated with very low friction
High demands are made on the sealing of the bearing, without increasing heat generation
Bearing position is to be designed particularly economically
78000 N dynamic/97000 N static

Specifications

Bore Diameter:	220 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	DE
Load Capacity:	78000 N
Maximum Speed:	3200 rpm
Number of Rows:	1
Outside Diameter:	270 mm
Series:	618
Temperature Rating:	-30 to 200 deg C
Width:	24 mm
