61911 TKN

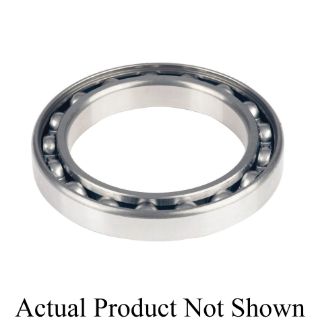

Picture of 61911 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
61911
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$395.70 / EA

Description

Brand Name

Timken®

Type

Straight Bore Thin Section Ultra Light

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken® Deep Groove Radial Ball Bearing, Straight Bore Thin Section Ultra Light, Series: 61000, 55 mm Bore, 80 mm OD, 1 Row, 13 mm Width, Open Closure, 16.6 kN Dynamic/14.1 kN Static Load, Steel Bearing, Cold Rolled Steel Cage, 8100 rpm Grease/9600 rpm Oil Maximum, -50 to 120 deg C

Application

Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

Super finished raceways

Specifications

Bearing Material:Steel
Bore Diameter:55 mm
Cage Material:Cold Rolled Steel
Closure Type:Open
Load Capacity:16.6 kN Dynamic/14.1 kN Static
Maximum Speed:8100 rpm Grease/9600 rpm Oil
Number of Rows:1
Outside Diameter:80 mm
Series:61000
Temperature Rating:-50 to 120 deg C
Width:13 mm
