61944-MA FAG

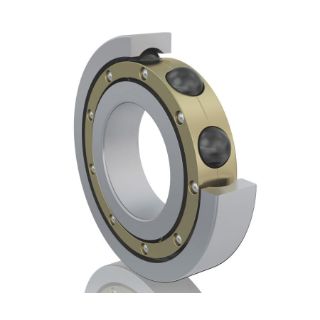

Picture of 61944-MA FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
61944-MA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,840.11 / EA

Description

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.
FAG Deep Groove Ball Bearing, Series: 619, 220 mm Bore, 300 mm OD, 1 Rows, 38 mm Width, Open Closure, 186000 N Load, Brass Cage, 3700 rpm Maximum, -30 to 200 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

  • Bearing arrangement must be operated with very low friction
  • High demands are made on the sealing of the bearing, without increasing heat generation
  • Bearing position is to be designed particularly economically
  • Solid brass cage, guided on outer ring rib
  • 186000 N dynamic/202000 N static

Specifications

Bore Diameter:220 mm
Cage Material:Brass
Closure Type:Open
Country of Origin:DE
Load Capacity:186000 N
Maximum Speed:3700 rpm
Number of Rows:1
Outside Diameter:300 mm
Series:619
Temperature Rating:-30 to 200 deg C
Width:38 mm

Products Specifications

Bore Size
220 mm
Brand Name
FAG
Measuring Units
Metric
Outside Diameter
300 mm
Width
28 mm
