6202-RSR-C3 FAG

Product Details

Manufacturer:
Manufacturer part number:
6202-RSR-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

FAG

Description

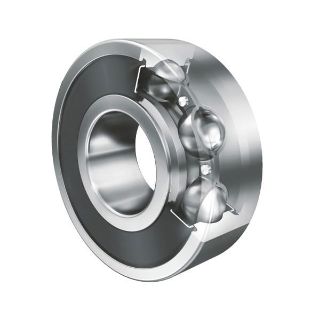

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.
FAG Deep Groove Ball Bearing, Series: Light Series, 15 mm Bore, 35 mm OD, 1 Rows, 11 mm Width, Sealed Closure, 8200 N Load, Steel Bearing, Rubber Seal, Sheet Steel Cage, -30 to 120 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

  • Bearing arrangement must be operated with very low friction
  • High demands are made on the sealing of the bearing, without increasing heat generation
  • Bearing position is to be designed particularly economically
  • C3 radial internal clearance
  • Contact lip seal on one side
  • 8200 N dynamic/3750 N static

Specifications

Bearing Material:Steel
Bore Diameter:15 mm
Cage Material:Sheet Steel
Closure Type:Sealed
Country of Origin:KR
Load Capacity:8200 N
Number of Rows:1
Outside Diameter:35 mm
Seal Material:Rubber
Series:Light Series
Temperature Rating:-30 to 120 deg C
Width:11 mm

Products Specifications

Brand Name
FAG Bearings
