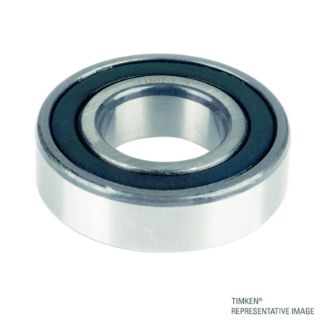

6203-2RS TKN

Name: 6203-2RS TKN
Brand: Timken
SKU: 6203-2RS TKN
Price: 20.85 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

6203-2RS

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$20.85 / EA

Description

Brand Name

Timken®

Type

Straight Bore Standard

Description

Our deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality. Our portfolio includes standard, thin section, narrow, wide and miniature and extra-small deep groove ball bearings that span 3 to 400 mm bore sizes. The extended product line includes a complete offering of open, shields, seals and snap ring combinations.

Timken®, 6203-2RS, ISO Deep Groove Radial Ball Bearing, Straight Bore Standard, Series: 6200, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Two Contact Seals Closure, 2158.166 lb Dynamic/1079 lb Static82923727312 Load, Steel Bearing, Buna-N Seal, 17000 rpm Grease/25000 rpm Oil Maximum, -40 to 120 deg C

Application

For use with electric motor applications to minimize vibration and noise

Standards

ABEC 1 Certified

Features

Designed as metric bearings, our deep-groove ball bearings follow ISO standards and are dimensionally interchangeable with competitor metric products
Super finishing on raceways to reduce friction
Preferred clearance designation(C3)
Premium grease for high-performance, low-torque and less-noise

Specifications

Bearing Material:	Steel
Bore Diameter:	17 mm
Cage Material:	Steel
Closure Type:	Two Contact Seals
Country of Origin:	US
Load Capacity:	2158.166 lb Dynamic/1079 lb Static82923727312
Maximum Speed:	17000 rpm Grease/25000 rpm Oil
Number of Rows:	1
Outside Diameter:	40 mm
Seal Material:	Buna-N
Series:	6200
Temperature Rating:	-40 to 120 deg C
Width:	12 mm
