Actual Product May Vary From Image

6203-2RSR-L038-C3 FAG

Name: 6203-2RSR-L038-C3 FAG
Brand: INA
SKU: 6203-2RSR-L038-C3 FAG
Price: 14.85 USD
Availability: InStock

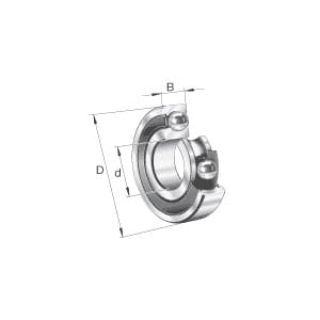

FAG 6203-2RSR-L038-C3 62..-2RSR Deep Groove Ball Bearing, 17 mm Dia Bore, 40 mm OD, 1 Rows, 12 mm W, 10100 N Dynamic/4750 N Static/225 N Fatigue Load

Manufacturer: INA

Manufacturer part number: 6203-2RSR-L038-C3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
10	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$14.85

Qty:

Product Details

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 62..-2RSR, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Seal Closure, 10100 N Dynamic/4750 N Static/225 N Fatigue Load, Buna-N Seal, Steel Cage, 11100 rpm Maximum, -30 to 110 deg C, Uncoated

Application

Textiles, Power Tools, Electric Motors, Pumps and Gearboxes

Standards

Meets to DIN 625-1

Features

Lip seals on both sides
C3 radial internal clearance

Specifications

Bore Diameter:	17 mm
Cage Material:	Steel
Closure Type:	Double Seal
Finish:	Uncoated
Load Capacity:	10100 N Dynamic/4750 N Static/225 N Fatigue
Maximum Speed:	11100 rpm
Number of Rows:	1
Outside Diameter:	40 mm
Seal Material:	Buna-N
Series:	62..-2RSR
Temperature Rating:	-30 to 110 deg C
Width:	12 mm
