Name: 6203-2Z-L038-C3 FAG
Brand: INA
SKU: 6203-2Z-L038-C3 FAG
Availability: OutOfStock

6203-2Z-L038-C3 FAG

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

6203-2Z-L038-C3

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FAG

Description

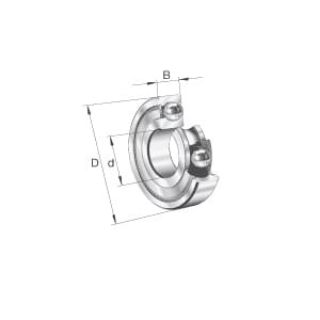

FAG Deep Groove Ball Bearing, Series: 62..-2Z, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Double Shield Closure, 10100 N Dynamic/4750 N Static/225 N Fatigue Load, Metal Seal, Steel Cage, 22300 rpm Maximum, -30 to 120 deg C, Uncoated

Application

Textiles, Power Tools, Electric Motors, Pumps and Gearboxes

Standards

Meets to DIN 625-1

Features

Gap seal on both sides
C3 radial internal clearance

Specifications

Bore Diameter:	17 mm
Cage Material:	Steel
Closure Type:	Double Shield
Finish:	Uncoated
Load Capacity:	10100 N Dynamic/4750 N Static/225 N Fatigue
Maximum Speed:	22300 rpm
Number of Rows:	1
Outside Diameter:	40 mm
Seal Material:	Metal
Series:	62..-2Z
Temperature Rating:	-30 to 120 deg C
Width:	12 mm
