Home / 6203-RS TKN

6203-RS TKN

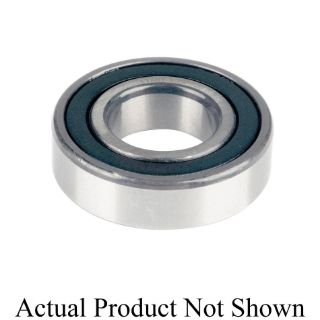

Picture of 6203-RS TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6203-RS
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26.23 / EA

Description

Brand Name

Timken®

Type

Light Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6203-RS, ISO Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 6200, 17 mm Bore, 40 mm OD, 1 Rows, 12 mm Width, Single Contact Seal Closure, 2158.166 lb Dynamic/1079 lb Static82923727312 Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 17000 rpm Grease/25000 rpm Oil Maximum, -40 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Contact seals offer superior lubricant retention and bearing protection from contaminants

Specifications

Bearing Material:Steel
Bore Diameter:17 mm
Cage Material:Cold Rolled Steel
Closure Type:Single Contact Seal
Load Capacity:2158.166 lb Dynamic/1079 lb Static82923727312
Maximum Speed:17000 rpm Grease/25000 rpm Oil
Number of Rows:1
Outside Diameter:40 mm
Seal Material:Nitrile Rubber
Series:6200
Temperature Rating:-40 to 120 deg C
Width:12 mm
