6204-2RS-NR TKN

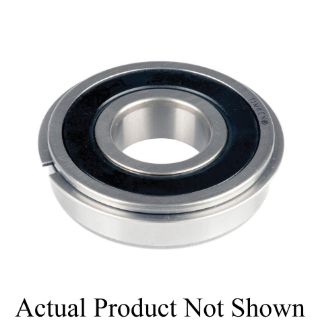

Picture of 6204-2RS-NR TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6204-2RS-NR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$48.46 / EA

Description

Brand Name

Timken®

Type

Light Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6204-2RS-NR, ISO Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 6200, 20 mm Bore, 47 mm OD, 1 Rows, 14 mm Width, Dual Contact Seal Closure, 2877.554 lb Dynamic/1483.739 lb Static Load, Nitrile Rubber Seal, Cold Rolled Steel Cage, 15000 rpm Grease/22000 rpm Oil Maximum, -40 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Contact seals offer superior lubricant retention and bearing protection from contaminants
  • Snap ring provides an adequate shoulder without sacrificing capacity

Specifications

Bearing Material:Steel
Bore Diameter:20 mm
Cage Material:Cold Rolled Steel
Closure Type:Dual Contact Seal
Load Capacity:2877.554 lb Dynamic/1483.739 lb Static
Maximum Speed:15000 rpm Grease/22000 rpm Oil
Number of Rows:1
Outside Diameter:47 mm
Seal Material:Nitrile Rubber
Series:6200
Temperature Rating:-40 to 120 deg C
Width:14 mm
