6208-2Z-C2 FAG

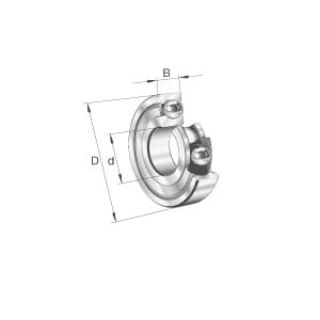

Picture of 6208-2Z-C2 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6208-2Z-C2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$60.66 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 62..-2Z, 40 mm Bore, 80 mm OD, 1 Rows, 18 mm Width, Double Shield Closure, 31000 N Dynamic/17800 N Static/900 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 10400 rpm Maximum, -30 to 120 deg C

Standards

Meets to DIN 625-1

Features

  • Gap seal on both sides
  • C2 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:40 mm
Cage Material:Steel
Closure Type:Double Shield
Load Capacity:31000 N Dynamic/17800 N Static/900 N Fatigue
Maximum Speed:10400 rpm
Number of Rows:1
Outside Diameter:80 mm
Seal Material:Metal
Series:62..-2Z
Temperature Rating:-30 to 120 deg C
Width:18 mm

Products Specifications

Brand Name
FAG Bearings
