620CA LEV

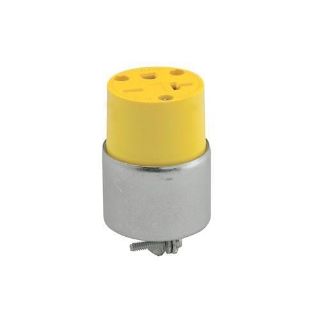

Picture of 620CA LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
620CA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$19.64 / EA

Description

Brand Name

Leviton®

Type

Armored Grounding

Alternate Supplier #

Grainger - 25LE72

Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they are ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Leviton® Straight Blade Connector, Armored Grounding, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20R, Commercial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, PVC/Steel, Yellow, 1.55 in Dia x 2.56 in H

Application

Ideal for shops, garages and rough duty work with hard floors

Standards

ANSI C73 | NOM 057 | NEMA WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • Triple drive head screws standard, Philips® and Robertson
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
  • Motor base inlet accepts 10 AWG maximum copper or copper clad wire
  • Brass plug blades and connector contacts for maximum conductivity
  • Rugged PVC body resist moisture and chemicals
  • Unique dimpled body design provides a secure grip
  • Speed thread assembly screws tighten with just a few quick turns
  • Suited for outdoor cords
  • 2-piece strain relief clamp center cord for neat installation
  • Zinc plated steel assembly screws

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:0.245 to 0.7 in
Country of Origin:MX
Dimensions:1.55 in Dia x 2.56 in H
Grade:Commercial
Material:PVC/Steel
NEMA Rating:NEMA 6-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:250 VAC
