620PA LEV

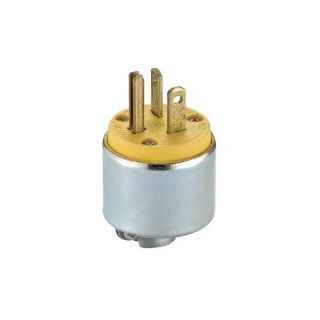

Picture of 620PA LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
620PA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$12.86 / EA

Description

Brand Name

Leviton®

Type

Armored Cable Mount Grounding

Description

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Leviton® Straight Blade Plug, Armored Cable Mount Grounding, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20P, Commercial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, PVC/Steel, Yellow, 1.55 in Dia x 1.89 in H

Application

For shops, garages and rough duty work with hard floors and commercial applications

Standards

ANSI C73 | NOM 057 | NEMA WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • Triple drive standard head screws
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
  • Motor base inlet accepts #10 AWG maximum copper or copper clad wire
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • 18 to 12 AWG terminal accommodation

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:0.245 to 0.7 in
Country of Origin:MX
Dimensions:1.55 in Dia x 1.89 in H
Grade:Commercial
Material:PVC/Steel
NEMA Rating:NEMA 6-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Voltage Rating:250 VAC
