6213-NR TKN

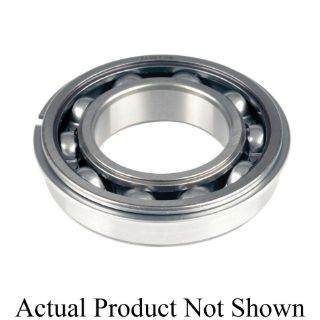

Picture of 6213-NR TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
6213-NR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$351.85 / EA

Description

Brand Name

Timken®

Type

Light Straight Bore

Description

Timken® supplies a full range of product in the world's most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
Timken®, 6213-NR, ISO Deep Groove Radial Ball Bearing, Light Straight Bore, Series: 6200, 65 mm Bore, 120 mm OD, 1 Rows, 23 mm Width, Open Closure, 12859 lb Dynamic71507750468/8992.358 lb Static Load, Cold Rolled Steel Cage, 6000 rpm Grease/8600 rpm Oil Maximum, -50 to 120 deg C

Application

High Speed Electric Motor Applications

Standards

ATEX 94/9/EC | CE 93/68/EEC | Precision Class ABEC 1 | REACH EC 1907/2006 | RoHS 2011/65/EU | Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act

Features

  • Super finished raceways
  • Quiet operation
  • ISO standard interchangeable dimensions
  • Electric motor quality (EMQ)
  • Snap ring provides an adequate shoulder without sacrificing capacity

Specifications

Bearing Material:Steel
Bore Diameter:65 mm
Cage Material:Cold Rolled Steel
Closure Type:Open
Load Capacity:12859 lb Dynamic71507750468/8992.358 lb Static
Maximum Speed:6000 rpm Grease/8600 rpm Oil
Number of Rows:1
Outside Diameter:120 mm
Series:6200
Temperature Rating:-50 to 120 deg C
Width:23 mm
