Actual Product May Vary From Image

6214 INA

Name: 6214 INA
Brand: INA
SKU: 6214 INA
Availability: OutOfStock

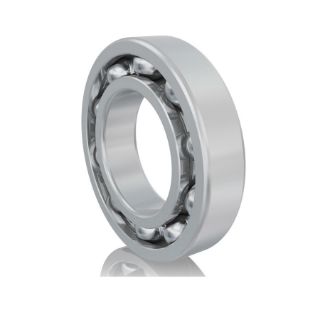

FAG 6214 Light Series Deep Groove Ball Bearing, 50 mm Dia Bore, 110 mm OD, 1 Row, 27 mm W, 66000 N Load

Manufacturer: INA

Manufacturer part number: 6214

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

FAG

Description

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.

FAG Deep Groove Ball Bearing, Series: Light Series, 50 mm Bore, 110 mm OD, 1 Rows, 27 mm Width, Open Closure, 66000 N Load, Steel Bearing, Sheet Steel Cage, 8200 rpm Maximum, -30 to 150 deg C

Application

For compensating static angular misalignments to a very limited extent

Features

Bearing arrangement must be operated with very low friction
High demands are made on the sealing of the bearing, without increasing heat generation
Bearing position is to be designed particularly economically
66000 N dynamic/44000 N static

Specifications

Bearing Material:	Steel
Bore Diameter:	50 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	US
Load Capacity:	66000 N
Maximum Speed:	8200 rpm
Number of Rows:	1
Outside Diameter:	110 mm
Series:	Light Series
Temperature Rating:	-30 to 150 deg C
Width:	27 mm
