6216-Z-C3 FAG

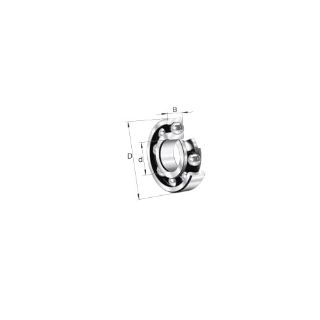

Picture of 6216-Z-C3 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
6216-Z-C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$281.83 / EA

Description

Brand Name

FAG

Description

FAG Deep Groove Ball Bearing, Series: 62 Series, 80 mm Bore, 140 mm OD, 1 Rows, 26 mm Width, Single Shield Closure, 77000 N Dynamic/55000 N Static/3550 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 7300 rpm Maximum, -30 to 120 deg C, Uncoated

Standards

Meets to DIN 625-1

Features

  • Gap seal on one side
  • C3 radial internal clearance

Specifications

Bearing Material:Steel
Bore Diameter:80 mm
Cage Material:Steel
Closure Type:Single Shield
Finish:Uncoated
Load Capacity:77000 N Dynamic/55000 N Static/3550 N Fatigue
Maximum Speed:7300 rpm
Number of Rows:1
Outside Diameter:140 mm
Seal Material:Metal
Series:62 Series
Temperature Rating:-30 to 120 deg C
Width:26 mm

Products Specifications

Brand Name
FAG Bearings
